Side Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

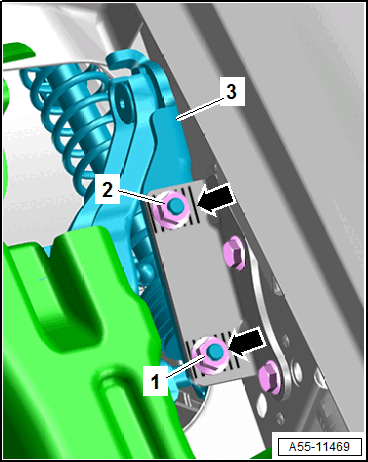

-- Loosen the nuts -1 and 2-.
-- Adjust the rear lid at the hinge -3- for the side.
- Use the marks -arrows- on the bracket for the side adjustment.
-- Tighten the nuts.
Tightening Specifications
- Refer to OVERVIEW - REAR LID, A6 SEDAN
