Length Adjustment at Hinge:
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

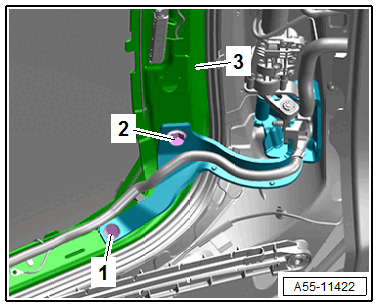

-- Loosen bolts -1 and 2-.
-- Adjust the rear lid -3- lengthwise.
-- Tighten the bolts.
Tightening Specifications
- Refer to OVERVIEW - REAR LID, A6 AVANT
