Rear Lid Seal, Removing And Installing, A6 Sedan: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

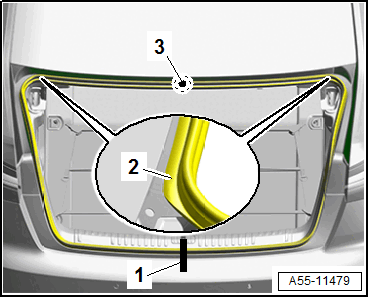

-- Position the rear lid seal on the body flange.
- The butt joint -1- of the rear lid seal must be positioned centered to the striker.
 Courtesy of AUDI OF AMERICA, LLC
|
- The cover lip -2- must face upward and be centered -3- to the body.
-- Press on the entire length of the rear lid seal.
