Height Adjustment on Hinge

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

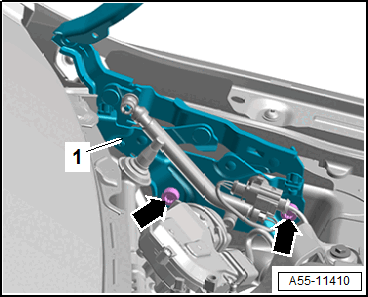

GWWA55-11410Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts -arrows-.

-- Adjust the height of the hinge -1-.

-- Tighten the bolts.

Tightening Specifications
