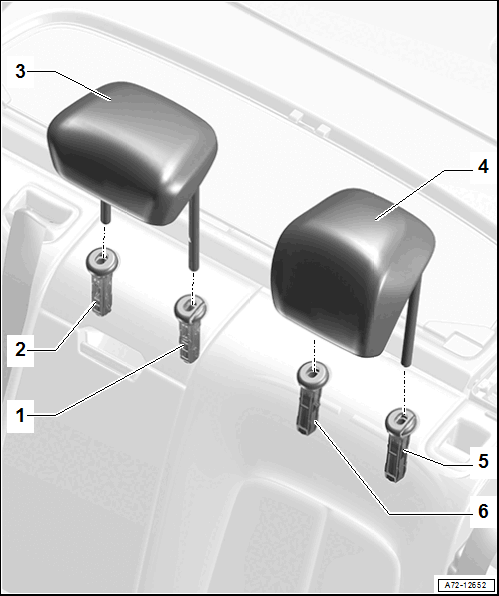

Overview - Headrest And Headrest Guide
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Headrest Guide
- Left
- Equipment version: 2+1 divided seats
- With the headrest height adjustment button
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER FOLDING BACKREST, 2+1 DIVIDED SEATS .
- Always replace after removing
- Headrest Guide
- Right
- Equipment version: 2+1 divided seats
- With locking spring
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER FOLDING BACKREST, 2+1 DIVIDED SEATS .
- Always replace after removing
- Headrest
- Center
- Equipment version: 2+1 divided seats
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Headrest
- Outside
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Headrest Guide
- Left
- With the headrest height adjustment button
- Removing and installing. Refer to the appropriate service information .
- Headrest Guide
- Right
- With locking spring
- Removing and installing. Refer to the appropriate service information .
