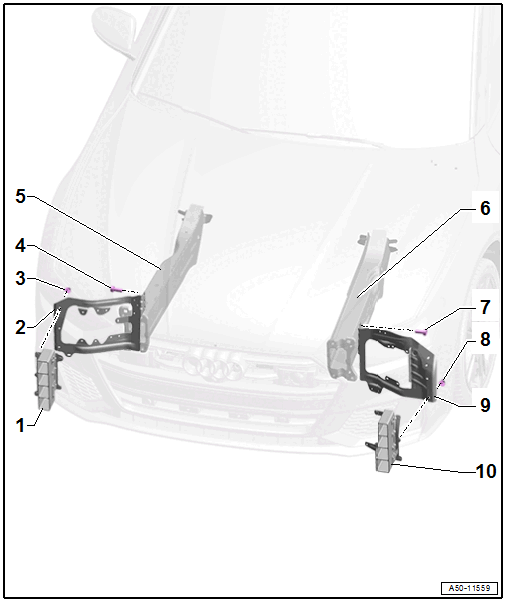

Overview - Insert
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Alignment
- Right
- Insert
- Right
- Removing and Installing. Refer to INSERT, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 5
- Bolt
- 70 Nm +45°
- Always replace after removing
- Quantity: 3
- Longitudinal Member
- Right
- Longitudinal Member
- Left
- Bolt
- 70 Nm +45°
- Always replace after removing
- Quantity: 3
- Nut
- 8 Nm
- Quantity: 5
- Insert
- Left
- Removing and Installing. Refer to INSERT, REMOVING AND INSTALLING .
- Wheel Alignment
- Left
