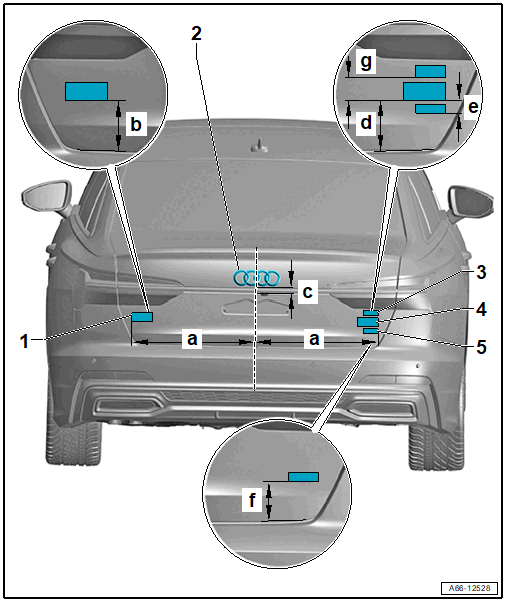

Dimensions - Rear Name Badges And Emblems, A6
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .
- Left Name Badge
- A6
- S6
- RS6
- A6L
A6 Sedan
Dimension -a- = 541 mm
Dimension -b- = 83 mm
A6 Avant
Dimension -a- = 563 mm
Dimension -b- = 123 mm
- Audi Emblem
Dimension -c- = 42 mm
- Right Name Badge
- ,i±1/2e
China Market-Specific Version:
Dimension -a- = 541 mm
Dimension -d- = 81 mm
Dimension -g- = 30 mm
- Right Name Badge
- 40 TFSI
- 45 TFSI
- 55 TFSI
- 30 TDI
- 35 TDI
- 40 TDI
- 45 TDI
- 50 TDI
- 50 TFSIe
- 55 TFSIe
A6 Sedan
Dimension -a- = 541 mm
Dimension -d- = 83 mm
A6 Avant
Dimension -a- = 563 mm
Dimension -d- = 119 mm
China Market-Specific Version:
Dimension -a- = 541 mm
Dimension -d- = 81 mm
- Right Name Badge
- quattro
A6 Sedan
Dimension -a- = 541 mm
Dimension -e- = 18 mm
Dimension -f- = 65 mm
A6 Avant
Dimension -a- = 563 mm
Dimension -e- = 18 mm
Dimension -f- = 123 mm
