Heat Shield For Front Tunnel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper heat shield on the transmission. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
-- Remove the subframe crossbrace. Refer to the appropriate service information .
-- Remove the steering intermediate shaft. Refer to the appropriate service information .

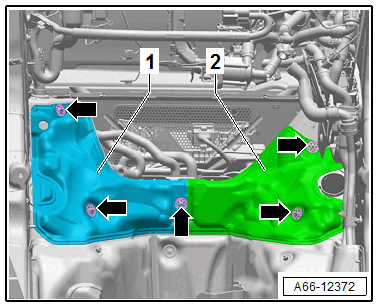

TIP:
For clarity the transmission is not shown.
-- Remove the lock washers -arrows-.
-- Guide the heat shields -1 and 2- upward.
