Overview - Rear Side Window, A6 Sedan

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

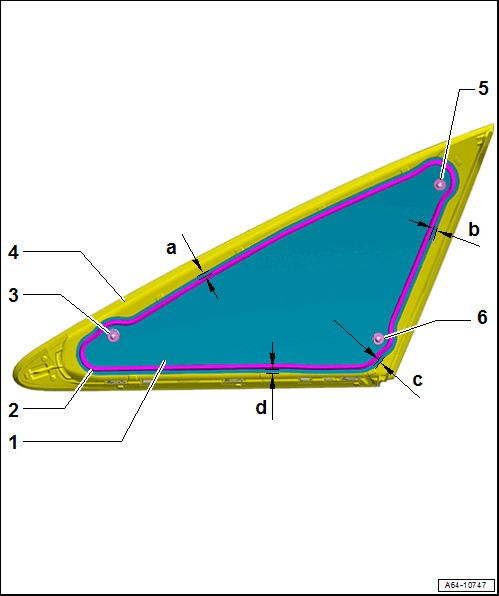

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing, push in using the locating pins -item 3, 5 and 6-
Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances
  - Dimension -a- = 7.4 mm
  - Dimension -b- = 7.7 mm
  - Dimension -c- = 7.9 mm
  - Dimension -d- = 7.7 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
Centering Pin
- Is cut through when removing the window
Molding
- Must not be damaged in the visible area
Centering Pin
- Is cut through when removing the window
Centering Pin
- Is cut through when removing the window
