Overview - Rear Side Window, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

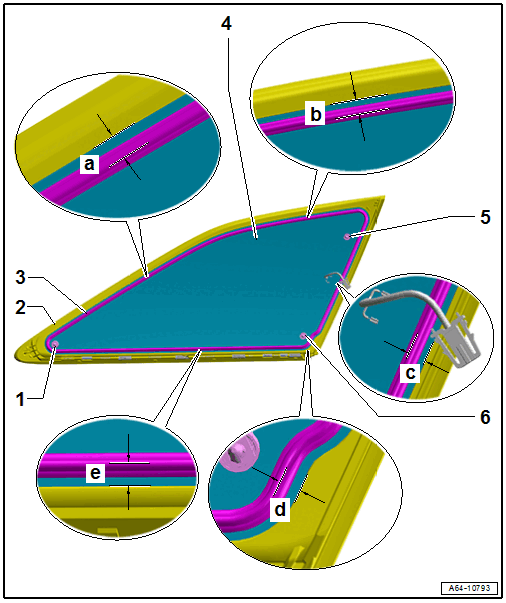

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Centering Pin
- Is cut through when removing the window
- Molding
- Must not be damaged in the visible area
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances
- Dimension -a- = 8.5 mm
- Dimension -b- = 8.2 mm
- Dimension -c- = 7.7 mm
- Dimension -d- = 7.8 mm
- Dimension -e- = 6.5 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- When installing, push in first using the centering pins -items 1, 5 and 6-
- Centering Pin
- Is cut through when removing the window
- Centering Pin
- Is cut through when removing the window
