Undamaged Rear Window, Removing And Installing, A6 Sedan

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Pay attention to the repair information. Refer to REPAIR INFORMATION .
To complete the procedure, a second technician is required to be at the following position. Refer to UNDAMAGED REAR WINDOW, REMOVING AND INSTALLING, A6 SEDAN => Remove the window glass with suction lifters. .
Required Tools and Materials for Removal and Installation. Refer to REQUIRED TOOLS AND MATERIALS FOR REMOVAL AND INSTALLATION .

Special tools and workshop equipment required

Pliers:T40172C

Courtesy of AUDI OF AMERICA, LLC
2 mm drill bit

Preparing the Hook:

Courtesy of AUDI OF AMERICA, LLC

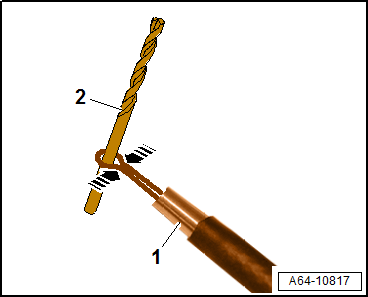

-- Insert a drill bit -2- into the small eye on the hook -1- and press the ends together more using pliers -arrows-.

Procedure

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Use the Pliers:T40172C with the Adapter:T40172/1 to remove the expanding rivet -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear window frame trim panel -2-.

-- Remove the high-mounted brake lamp. Refer to HIGH-MOUNTED BRAKE LIGHT M25, REMOVING AND INSTALLING, A6 SEDAN .

-- Remove the rear roof grab handles. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

CAUTION:

There is a risk of damage due to improper handling.

- Do not kink the headliner.

Replace the headliner if it is bent.

-- Unclip the rear headliner at the clips -1 and 3- from the body in direction of -arrows- using the Pry Lever:80 - 200 .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the headliner from the body in the center at the centering pin -2-.

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

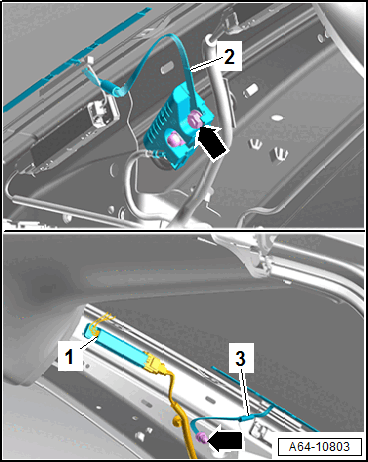

-- Remove the ground wires -2 and 3- from the threaded pin and secure it to the center of the window with adhesive tape.

-- Disconnect the connector -1- and secure to the window glass with adhesive tape.

CAUTION:

Risk of injury to the hands and eyes from glass fragments.

Getting cut is possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the awl -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

To prevent any damage, cover the area where the awl comes out at the rear lid with adhesive tape.

-- Push the awl at the lower left side of the rear window from the inside outward through the adhesive bead -arrow- and pull the cutting cord outward.

The awl stays in the adhesive bead.

-- Route the Window Removal Set - Cutting Cord:VAS 861 001/1A counter-clockwise under the rear window.

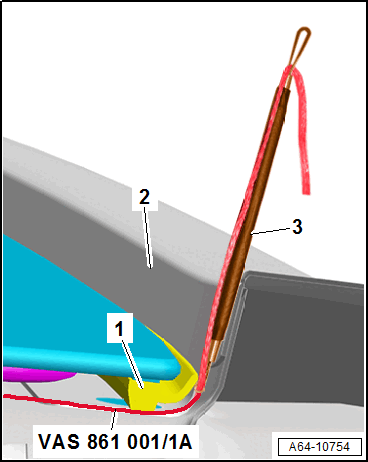

-- Guide in the Window Removal Set - Cutting Cord: VAS 861 001/1A in the hook -3- as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Guide in the hook between the cover profile -1- for the rear window and the body -2-.

-- Route the Window Removal Set - Cutting Cord:VAS 861 001/1A with the hook on the side along and around the curve under the rear window.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hook and pull through the remaining Window Removal Set - Cutting Cord:VAS 861 001/1A to tension upward.

-- Guide the hook on the side of the rear window back between the rear window cover profile and the body.

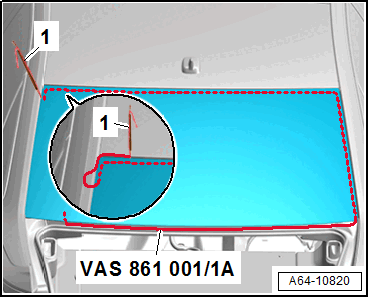

-- Route the Window Removal Set - Cutting Cord:VAS 861 001/1A with the hook on the upper edge along and around the curve under the rear window.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hook and pull through the remaining Window Removal Set - Cutting Cord:VAS 861 001/1A to tension to the side.

-- Guide the hook on the upper edge of the rear window back between the rear window cover profile and the body.

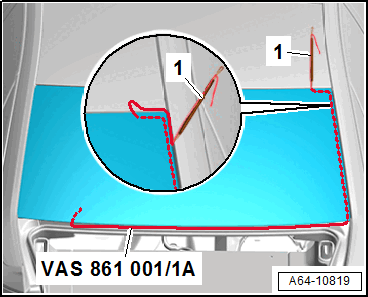

-- Route the Window Removal Set - Cutting Cord:VAS 861 001/1A with the hooks on the side along the underside of the rear window.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the Window Removal Set - Cutting Cord:VAS 861 001/1A to the awl and pull through inward.

-- Secure the end of the Window Removal Set - Cutting Cord: VAS 861 001/1A with the hook -1- to the body.

-- Secure the removal device with the reel device -2- on the inside of the window.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Window Removal Set - Cutting Cord:VAS 861 001/1A in the reel device -arrow-.

-- Tension the cutting cord with the reel device.

-- Cut free in the lower area of the rear window.

-- To guide the cord better place the trim wedge -1- from the Window Removal Set:VAS 861 001A underneath.

-- Loosen the centering pin -1- from the rear window with pliers.

Courtesy of AUDI OF AMERICA, LLC

-- Move the removal device -2- and cut free the area along the D-pillar upward.

-- Push in the cutting guard -3- from the Window Removal Set:VAS 861 001A to guide the Window Removal Set - Cutting Cord:VAS 861 001/1A between the window frame and the rear window.

-- Offset the removal device -1- and cut out the upper section of the rear window.

Courtesy of AUDI OF AMERICA, LLC

The hook -2- must be engaged in the body.

-- Loosen the centering pin -2- from the rear window with pliers.

Courtesy of AUDI OF AMERICA, LLC

-- Move the removal device -1- and cut free the area along the D-pillar downward.

The hook -3- must be engaged in the body.

-- Offset the removal device -1- and cut out the lower section of the rear window.

Courtesy of AUDI OF AMERICA, LLC

-- To better guide the cord, place the trim wedge -2- from the Window Removal Set:VAS 861 001A underneath it.

-- Remove the window glass with suction lifters.
