Overview - Rear Window, A6 AVANT

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

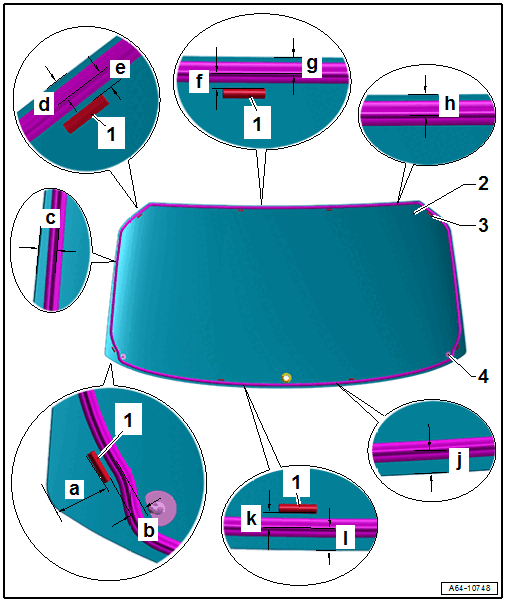

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

Spacer
- Quantity: 3
  - Dimension -a- = 32.1 mm
  - Dimension -e- = 8 mm
  - Dimension -f- = 8.1 mm
  - Dimension -k- = 8 mm
Rear Window
- Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- Center at the sides
Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances
  - Dimension -b- = 6.2 mm
  - Dimension -c- = 6.5 mm
  - Dimension -d- = 7.7 mm
  - Dimension -g- = 7 mm
  - Dimension -h- = 7 mm
  - Dimension -j- = 11.5 mm
  - Dimension -l- = 11.6 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
Locating Pins
- Loosen the bonding before cutting out the window glass
- Quantity: 2
