Battery, 48V A6, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

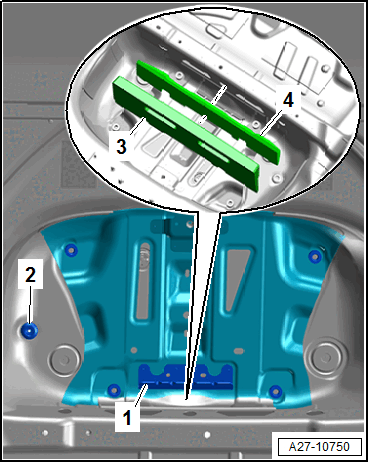

-- The small crashpad -4- and large crashpad -3- must be inserted correctly into the spare tire well.

Courtesy of AUDI OF AMERICA, LLC

Conditions

Note the "L" and "R" markings.

-- Slide the battery with protective housing all the way onto the retaining bracket -1- so that the clamping strip engages in the retaining bracket.

Conditions

The protective housing must not be able to move anymore.

-- Check the protective housing for secure fit after installation.

-- Check the pressure equalization hose to make sure it is seated correctly in the grommet -2-.

-- When the ignition and electrical equipment are switched off, connect the battery in the following sequence:

-- First connect the battery positive cable terminal to the battery positive terminal "+" and tighten the nut.

-- Tighten the battery terminal clamp for the ground wire on the battery negative terminal "-" and remove the nut.

-- Attach the cap until it engages audibly.

-- Connect the connector.

-- Connect the battery. Refer to BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITHOUT ALTERNATIVE DRIVE SYSTEM, (0K0) , or BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITH HIGH-VOLTAGE SYSTEM, (0K3) , or BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITH ALTERNATIVE DRIVE SYSTEM, (0K4) .

If the 48V battery was replaced, then perform the 48V battery adaptation test plan.

-- Perform the "A6 - 48V Battery, Adapting" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
