Turbocharger, Cylinder Bank 2 (Left), Removing And Installing, 2.9L Engine: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Detach the upper air duct pipe and pivot to the left side. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .

-- Remove the Engine Control Module -J623-. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

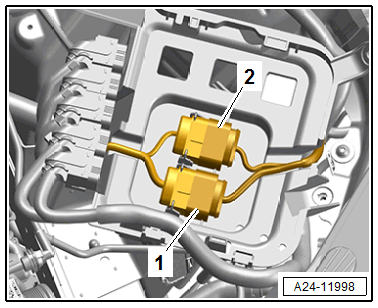

-- Remove the connectors -1 and 2- from the bracket and disconnect them, and then free up the wires:

Courtesy of AUDI OF AMERICA, LLC

-- Free up the connector -arrow-.

Fig 1: Identifying Brakelines, And ABS Hydraulic Unit -N55-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant line -2- and wiring harness.

-- Remove the bolts -arrows- and remove the engine control module bracket -1-.

All additional procedures are described. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
