ELECTRICAL COMPRESSOR WITH Electric Compressor Control Module -J1123-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- De-energize the 48 Volt system. Refer to BATTERY A, DISCONNECTING AND CONNECTING, VEHICLES WITH HIGH-VOLTAGE SYSTEM, (0K3) .

-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING, 2.9L ENGINE .

-- Remove the bolts -arrows- and the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

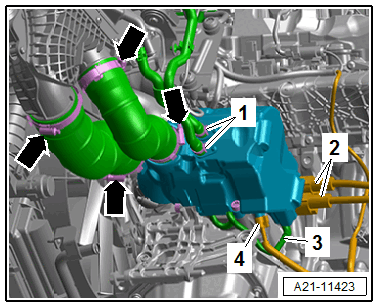

-- Loosen the hose clamps -arrow- and remove the air duct hoses.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1- and remove the coolant hoses.

-- Disconnect the connectors -2 and 4-.

-- Remove the vacuum hose -3- without damaging it.

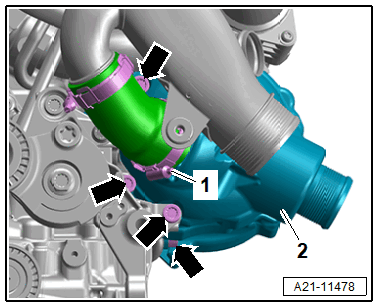

-- Loosen the hose clamp -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the electrical compressor -2-.
