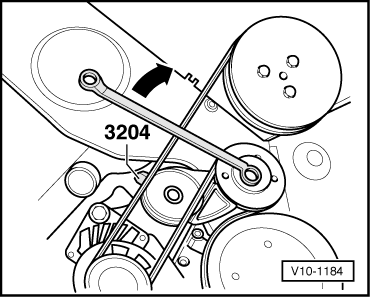

Fig. 1 Loosening ribbed belt

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove ignition coils with bracket; remove upper pulley guard.

-- Turn open-end wrench in direction of arrow and install drift:3204 .

-- Remove ribbed belt from pulley.
