Adjustable Steering Column And Steering Column Tube: Notes

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Audi 100

NOTE:

To make installation easier, drive the vehicle onto a lift and raise until front wheels hang freely.

Removing

-- Remove steering column switches STEERING COLUMN SWITCHES .

-- Remove left cover under instrument panel.

-- Remove left footwell air duct.

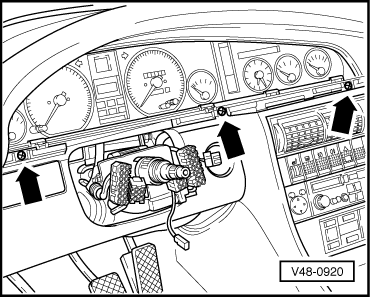

-- Loosen screws (arrows) and remove trim.

GWWV48-0920

Courtesy of AUDI OF AMERICA, LLC

-- Remove mounting screws (arrows).

GWWV48-0921

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull instrument cluster out of instrument panel.

-- Disconnect harness connector; remove instrument cluster.

-- Remove connector housing from ignition lock.

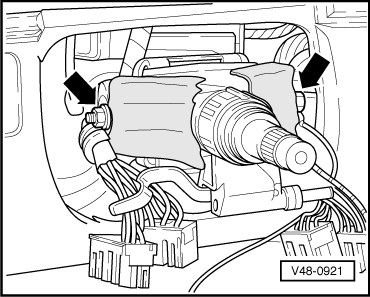

-- Remove left and right nuts (arrows).

GWWV48-0921

Courtesy of AUDI OF AMERICA, LLC

-- Remove wiring harness and clamps from threaded bolt.

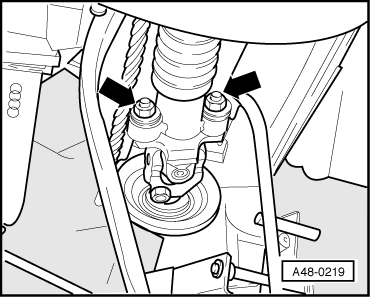

-- Disconnect universal joint from steering column, then remove both bolts.

GWWA48-0219

Courtesy of AUDI OF AMERICA, LLC

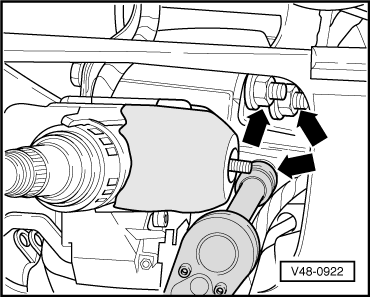

-- Remove Torx® bolt with T 30 insert such as Snap-On FTX30A.

GWWV48-0922

Courtesy of AUDI OF AMERICA, LLC

-- Remove steering column tube from bracket.

-- Remove screws from bracket.

-- Push steering column tube with steering lock housing down slightly, turn to left, pull steering lock housing out of steering column tube and remove.

-- Disconnect cable on steering column tube.

-- Remove steering column with steering column tube by carefully pulling upward out of instrument panel.
