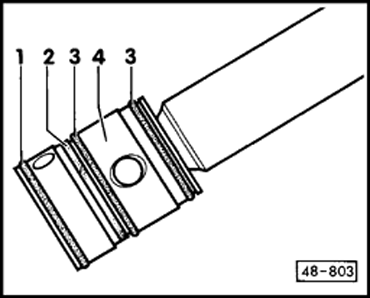

Fig. 6 Installation position of O-rings and support ring

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
GWWUS48-803Courtesy of AUDI OF AMERICA, LLC
  1. Outer O-ring
  2. Support ring (slotted)
  3. Center and inner O-ring
  4. Right end housing
