Steering Column Adjustment Cable, Adjusting

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Audi 100

NOTE:

Adjustment is shown with steering column removed.

WARNING:

To adjust gap -A-, lock steering column.

-- Remove driver's side storage shelf under instrument panel.

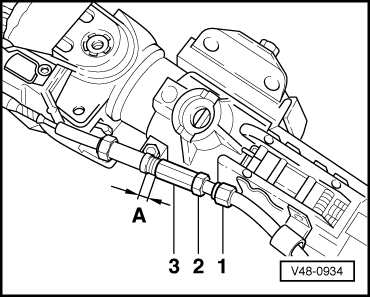

-- Loosen lock nut -2-

Courtesy of AUDI OF AMERICA, LLC

-- Turn adjusting screw -1- out of or into adjusting element -3- until adjusting element has a play of approx. 2 mm (0.08 in.) in gap -A-.

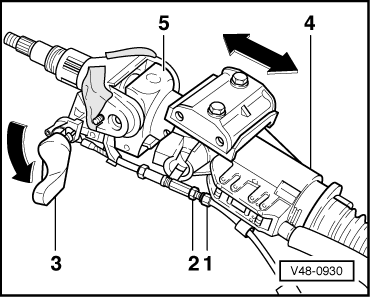

-- Check length adjustment, by swinging length adjustment lever - 3- down and pushing steering column -5- back and forth in steering column tube -4-.

Courtesy of AUDI OF AMERICA, LLC

-- If steering column -5- hangs up in steering column tube -4-, correct adjustment by turning adjusting screw -1- ; decrease gap -A- slightly (illustration 48-934) until steering column moves freely in steering column tube.

-- Lock adjusting screw -1- with lock nut -2-.

-- Install driver's side storage shelf under instrument panel.

A6 from MY 1995

NOTE:

Cable adjustment is shown with steering column removed.

Lock steering column to set the gap -A-.

-- Remove driver side storage shelf under instrument panel .

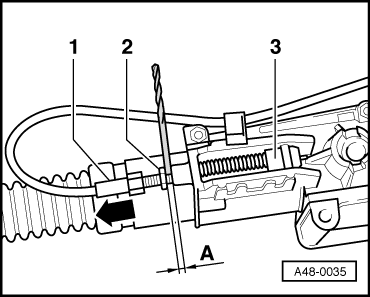

-- Pull cable -1- in direction of arrow enough so locking mechanism -3- does not move.

Courtesy of AUDI OF AMERICA, LLC

-- Check that gap -A- = 3 - 3.5 mm (0.12-0.138 in.); adjust if necessary.

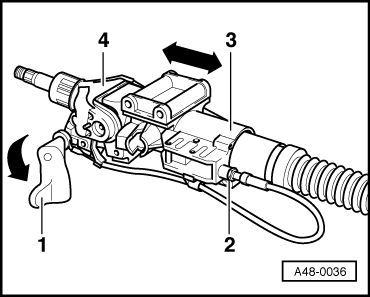

-- Check fore/aft adjustment by swinging lever -1- down and pushing steering column -4- back and forth in steering column tube -3-

Courtesy of AUDI OF AMERICA, LLC

-- If steering column sticks, correct by turning adjusting nut -2-, decrease gap -A- slightly (→ illustration A48-0035) until proper clearance of steering column in column tube is achieved

-- Lock adjusting nut with sealing paint to prevent it from turning

-- Install driver side lower storage shelf.
