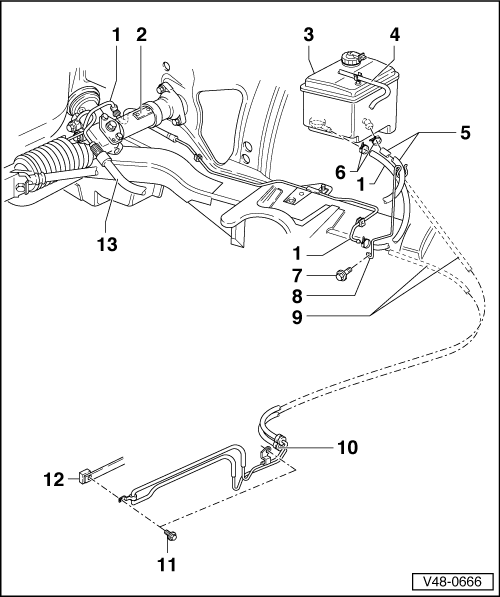

Power Steering Fluid Circuit
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Return line
- Rotary slide valve housing-to-reservoir
- Power steering gear
- Reservoir
- Coolant hose
- Suction hose
- Reservoir-to-hydraulic pump
- Hose clamps
- To fasten return line and suction hose on reservoir
- Bolt
- 20 Nm (15 ft lb)
- Mounting clip
- Return hoses
- Oil cooler
- Screw/washer assembly
- 10 Nm (7 ft lb)
- Mounting points for oil cooler
- Pressure hose
- Hydraulic pump to rotary slide valve housing
