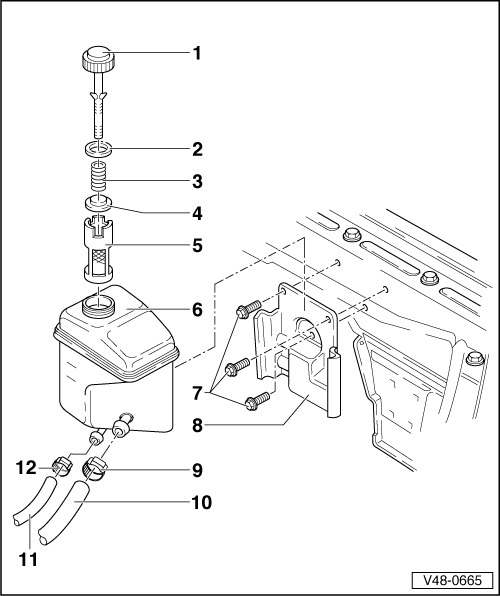

Hydraulic Fluid Reservoir Assembly Overview
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Power steering hydraulic system operates with power steering fluid, Part No. G 002 000.
- Filler cap with oil dipstick
- Tighten forcefully by hand
- Note MAX and MIN marks on dipstick
- Seal
- Pressure spring
- Spring seat
- Install on dipstick
- Strainer
- Clean with solvent
- Reservoir
- If new, fill with power steering fluid
- Capacity approx. 1.2 liters (1.2 qt)
Checking fluid level:
-- Let engine idle with wheels straight ahead for approx. two minutes.
-- Stop engine (switch ignition off) and immediately check power steering fluid level, noting marks on the reservoir or dipstick.
-- If necessary top off to MAX mark.
- Bolts
- 10 Nm (7 ft lb)
- Bracket
- Bolt to wheel housing
- Hose clamp
- Suction hose
- Return hose
- Hose clamp
