Terminal 40 Wire Junction 2 TV67, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery. Refer to Battery A, Disconnecting and Connecting .
-- Remove the rear panel sill frame. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM .
-- Release the retainer -1-.
-- Open the covers -2-.

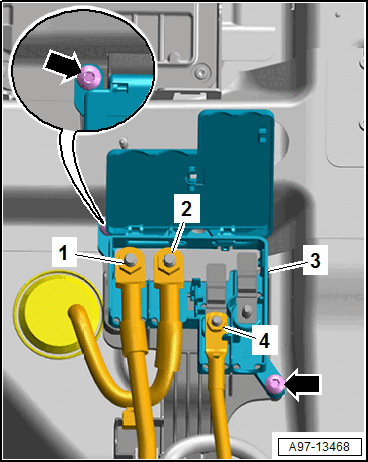

-- Remove the wires -1-, -2- and -4-, and free them up.
-- Remove the bolts -arrows-.
-- Remove the Terminal 40 Wire Junction 2 -TV67- -3-.
