Terminal 30 Wire Junction TV2, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Terminal 40 Wire Junction -TV66- and move it to the side with the wires still connected. Refer to TERMINAL 40 WIRE JUNCTION TV66, REMOVING AND INSTALLING .

-- If installed, remove the terminal 30a wire junction. Refer to TERMINAL 30A WIRE JUNCTION TV3, REMOVING AND INSTALLING .

-- If installed, disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

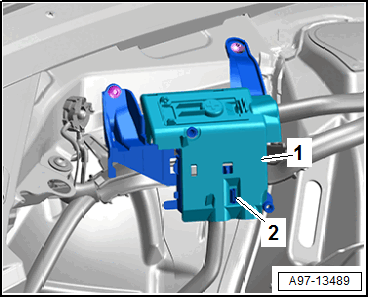

-- Release the retainer -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the covers -2-.

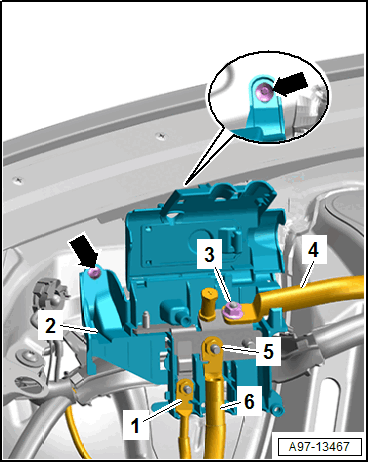

-- Remove the nuts -3- and -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wires -4- and -6- and free up.

-- Remove the wire -1- and free it up.

-- Remove the bolts -arrows-.

-- Remove the Terminal 30 Wire Junction -TV2- -2-.
