Instrument Panel Fuse Holder, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
LHD vehicle
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

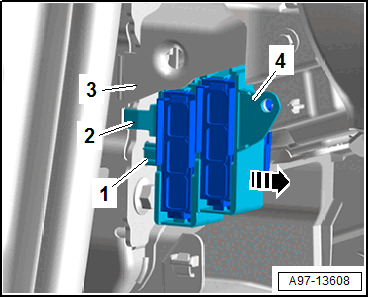

-- Open the clip -2-.
-- Pull the fuse panel -4- out toward the rear -arrow- and remove.
Conditions
- The guide -1- must be removed completely from the instrument panel crossmember -3-.
-- Open the clip -arrow-.
-- Push out the fuse panel -2- and disengage from the fuse panel -1-.
