Vehicle Electrical System Control Module J519, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
If the Vehicle Electrical System Control Module - J519- is replaced, the test plan for replacing the control module must be performed.
-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .

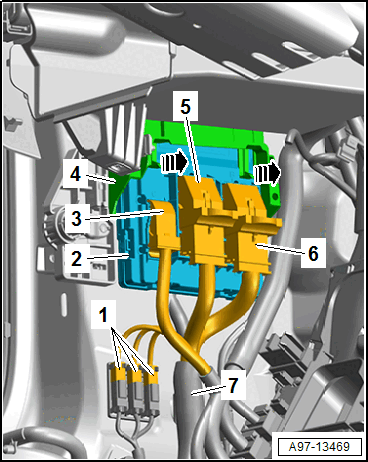

-- Disconnect the antenna wires -1-.
-- Disconnect the connectors -3-, -5- and -6-.
-- Free up the wiring harness -7-.
-- Release the retainers -arrows-.
-- Remove the Vehicle Electrical System Control Module -J519- -2- downward from the mount -4-.
