Data Bus On Board Diagnostic Interface J533, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- When installing, the Data Bus on Board Diagnostic Interface -J533- must always be installed with the protective cover -1-, even if no protective cover has been installed before. Refer to Parts Information.

Courtesy of AUDI OF AMERICA, LLC

Tip

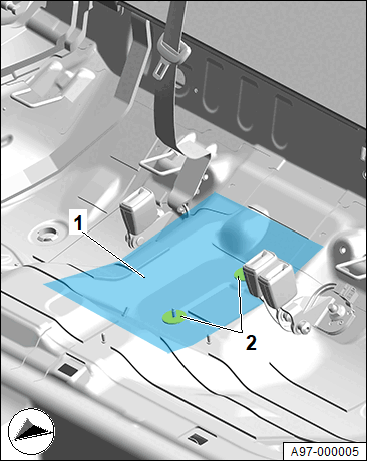

The rubber spacers -2- are adhered to the protective cover.

-- Slide the protective cover -1- with the rubber spacers -2- onto the threaded pins.

Courtesy of AUDI OF AMERICA, LLC

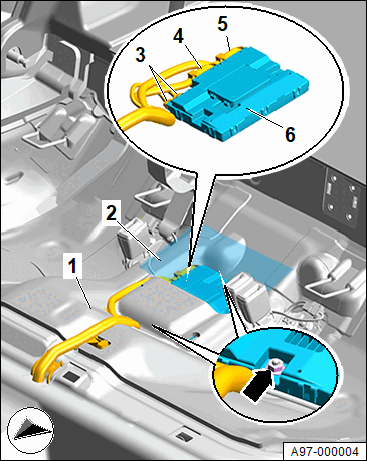

-- Connect the connectors -3-, -4- and -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Data Bus On Board Diagnostic Interface -J533- into the protective cover -2-, position it on the threaded pins and tighten on the inside of the protective cover using the nuts -arrow-.

-- Align the protective cover opening on a large scale and fold back the insulation mat.

If the Data Bus on Board Diagnostic Interface - J533- is replaced, complete the test plan for replacing the control modules:

-- Complete the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
