Front Axle Suspension Struts, Removing Transportation Blocks From Sport Suspension
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Requirements:
- Vehicle suspension is decompressed.
Procedure :

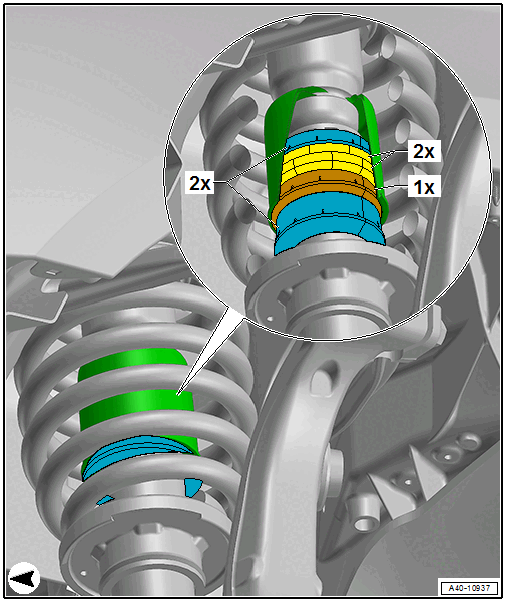

-- Push all five transportation blocks per suspension strut off of the piston rod.
NOTE:
Only applies to vehicles with Sport suspension (PR number 1BE).
The transportation blocks are located outside of a visible area under the dust cap.
-- When all transportation blocks are removed from the vehicle, remove the tag from the rearview mirror.
