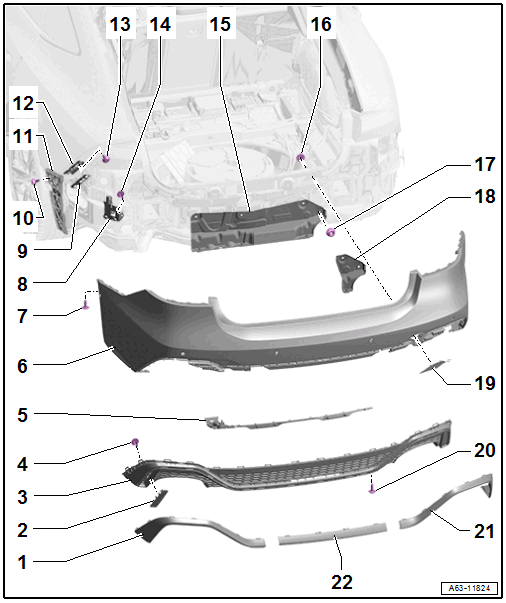

Overview - Bumper Cover, RS7 SPORTBACK

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Left Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER SIDE TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Bolt
- 2 Nm
Mount
- For the power rear lid opening sensor and power rear lid opening control module
Bumper Cover
- Removing and Installing. Refer to the appropriate service information .
Bolt
- 2 Nm
Bracket
- For lane change assistance control module
Locking Rail
- For the bumper cover
Bolt
- Tightening specification and sequence. Refer to the appropriate service information .
- Quantity: 3
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to the appropriate service information .
Mount
- Upper
- For securing the bumper cover
- Removing and Installing. Refer to the appropriate service information .
Bolt
- Tightening specification and sequence. Refer to the appropriate service information .
- Quantity: 3
Bolt
- Tightening specification. Refer to the appropriate service information .
- Quantity: 3
Mount
- Lower
- For equipment versions without trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- 4 Nm
- Quantity: 4
Nut
- 4 Nm
- Equipment versions without trailer hitch: quantity: 4
- Equipment versions with a trailer hitch, quantity: 2
Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Cover
- For the towing eye
Bolt
- 2 Nm
- Quantity: 3
Right Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER SIDE TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
Center Trim Molding
- For the bumper cover lower section
- Removing and Installing. Refer to CENTER BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
