Overview - Bumper Cover, A6 S Line

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

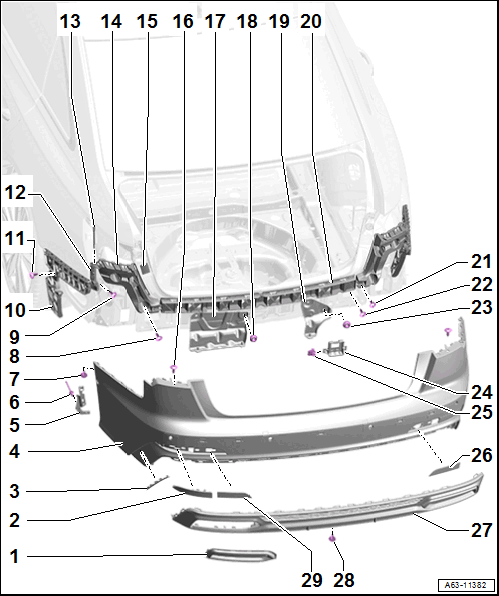

Fig 1: Overview - Bumper Cover, A6 S Line

Courtesy of AUDI OF AMERICA, LLC

Trim with Trim Molding
- Removing and Installing. Refer to SIDE TRIM WITH BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A6 .
Large Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING, A6 S LINE .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6 .
Intermediate Piece
- For securing the wheel housing liner
Rivets
Bolt
- 2 Nm
Bolt/Nut
- Sedan: bolts
- Avant: bolts/nut
- Tightening specification and sequence. Refer to Figure.
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 2
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
Mount
- Upper
- For securing the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING, A6 .
Locating Pin
- For attaching the rear bumper cover to the upper mount
Outer Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Clip
- For the bumper cover
Bolt
- 2 Nm
Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- 4 Nm
- Equipment versions without trailer hitch: quantity: 4
- Equipment versions with a trailer hitch, quantity: 2
Mount
- Lower
- For equipment versions with trailer hitch
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Mount in the Center
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 2
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
Nut
- 4 Nm
- Equipment versions with a trailer hitch, quantity: 2
Bracket
- For Garage Door Opener Control Module -J530-
Spring Nut
Large Reflector/Towing Eye Cover
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, A6 .
Bolt
- 2 Nm
- Quantity: 3
Small Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A6 .
