Bumper Cover Lower Section, Removing And Installing, A6 ALLROAD: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6 .

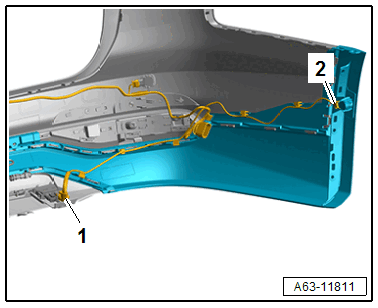

-- If equipped, disconnect the connector -1- and free up the wiring harness.
-- If equipped, disconnect the connector -2- and free up the wiring harness.

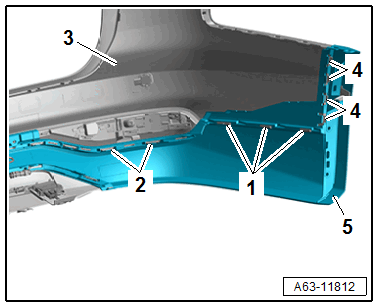

-- Release the catches -1, 2 and 4- to do so start on the longitudinal side.
-- Remove the lower section -5- from the bumper cover -3-.
