Side Air Duct, Removing And Installing, RS6, RS7 SPORTBACK

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

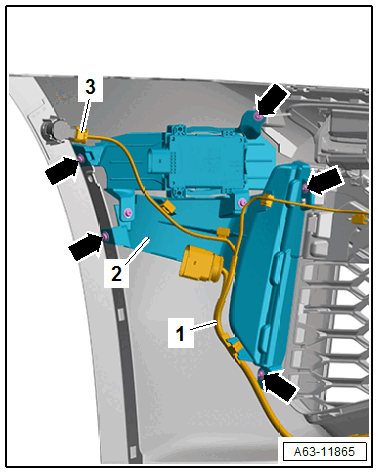

-- Disconnect the connector -3- and free up the wiring harness -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Right: if necessary, free up the washer fluid hose.

-- Remove the bolts -arrows-.

-- Remove the air duct -2-.

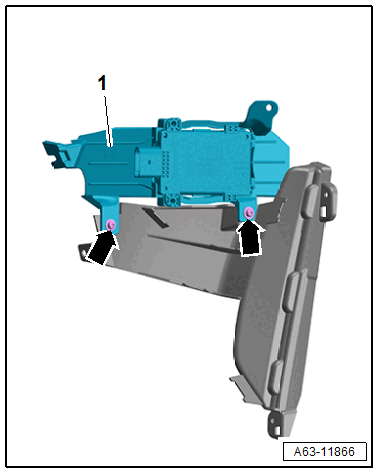

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1-.

Tightening Specifications

Refer to OVERVIEW - BUMPER COVER, RS6, RS7 SPORTBACK
