Side Air Duct, Removing And Installing, A6: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Vehicles with auxiliary radiator: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Loosen the front wheel housing liner in the air duct area and push it to the side.

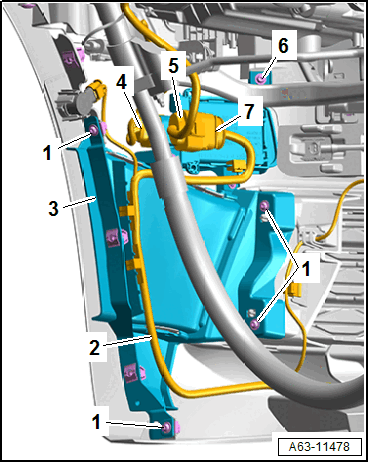

-- Left side: disconnect the connectors -4 and 5-.
-- Free up the connector -7- and the wiring harness -2-.
-- Remove the bolts -1-.
-- Equipment versions with control module for front object detection radar sensor: remove the bolt -6-.
-- Remove the air duct -3-.
-- Remove the bolts -arrows-.
-- Remove the mount -1-.
-- Release the retainers -arrows-.
-- Remove the cover -2- from the side air duct -1-.
