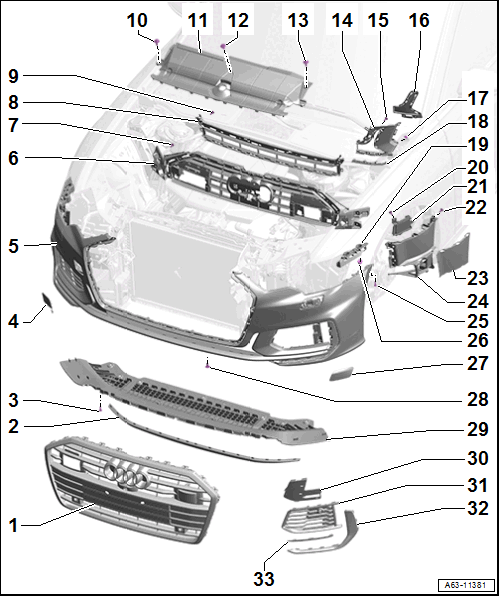

Overview - Bumper Cover, A6 S Line
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE, A6, A7 SPORTBACK .
- Front Spoiler
- Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, A6 AND A7 SPORTBACK .
- Bolt
- 5 Nm
- Quantity: 3
- Towing Eye Cover
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, A6, A7 SPORTBACK .
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- End Panel
- Center
- Removing and Installing. Refer to CENTER END PANEL, REMOVING AND INSTALLING, A6 .
- Bolt
- On radiator grille; quantity: 11, 2 Nm
- On bumper cover; quantity: 4, 1.5 Nm
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 S LINE, S6 .
- Bolt
- 2 Nm
- Quantity: 4
- Bolt
- 2 Nm
- Quantity: 2
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING, A6, A7 SPORTBACK .
- Expanding Rivet
- Bolt
- 5 Nm
- Quantity: 3
- Deformation Element
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 S LINE, S6 .
- Bolt
- 2 Nm
- Quantity: 2
- Trim
Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING, A6 S LINE, S6 .
- Clip
- Quantity: 4
- Clamping Strip
- Bumper Cover Mount
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Only on the left side
- Bracket
- For central connector
- Only on the left side of vehicles without radar sensor
- Bolt
- Inner screw: 1.5 Nm
- Outer screw: 2 Nm
- Quantity: 4
- Cover
- For the side air duct
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, A6 .
- Air Duct
- Side
- Removing and Installing. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING, A6 .
- Bolt
- 2 Nm
- Nut
- 4 Nm
- Quantity: 2
- Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 8
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
- Trim
- For the side air intake grille
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 .
- Side Trim
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING, A6 S LINE AND S6 .
- Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING, A6 S LINE AND S6 .
Tightening Specifications - Deformation Element, Market-Specific Version
-- Tighten the bolts -1- to 2 Nm.
