Molded Foam Part, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

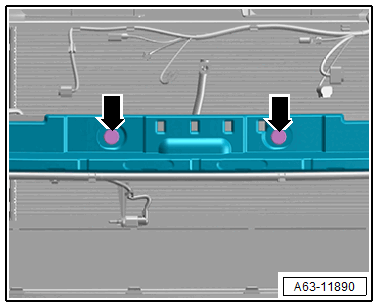

-- If equipped, remove the Christmas Tree™ fastener -arrows-.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.
-- Disconnect the connector -2- by removing the connector lock and pressing it down.
-- Release the tabs -arrows- and remove the molded foam part -1- from the bumper carrier.
