Center Air Intake Grille, Removing And Installing, RS6, RS7 SPORTBACK: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

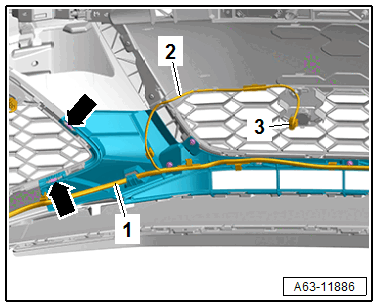

-- Disconnect the connector -3- and free up the wiring harness -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the clips -arrows-.

-- Right: if necessary, free up the washer fluid hose.

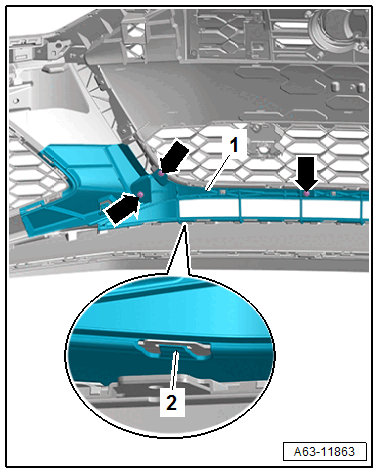

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -2-.

-- Remove the air intake grille -1-.
