Front Passenger Side Ionizer -J1106-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

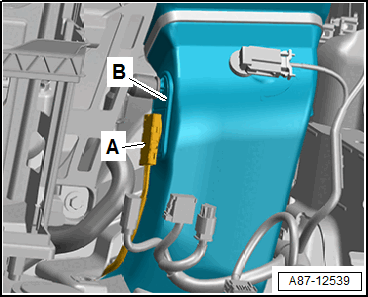

-- Turn the ionizer -A- clockwise and remove from the air duct -B-.
-- Label the allocation of wires to the connector housing for reinstallation.
-- Release the catches and open the doors -B and D- on the connector housing -C-.
-- Using the Release Tool Set :VAS1978 , remove the pins from the connector housing. Refer to CONNECTOR HOUSINGS, RELEASING AND DISASSEMBLING .
