Vehicle Interior Forced Air Extraction, Checking
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

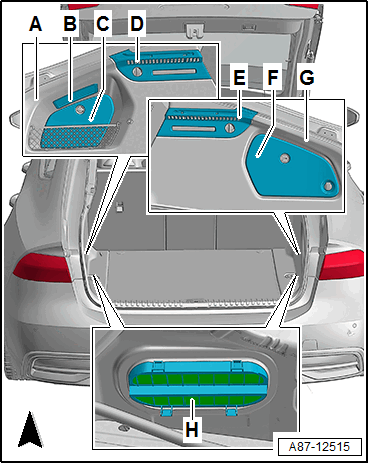

- The vent openings -B, D and E- may not be sealed or covered; otherwise, it may cause problems in the vehicle interior ventilation.
-- Unclip the cover -C and F- from the luggage compartment side trim panels -A and G-. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM / OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, VEHICLES WITH HIGH-VOLTAGE SYSTEM .
-- Check the left and right vent frame -H- for flow.
- The sealing lips in the vent frame -H- must be free to move and close.
- The vent frame -H- must be installed on the same side.
- The vent frame -H- may not be covered.
