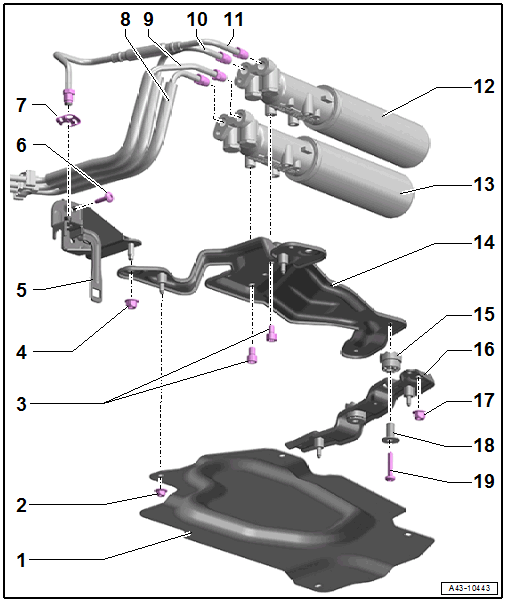

Overview - Central Valve
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- Bolts
- 20 Nm
- Nut
- 20 Nm
- Bracket
- Bolt
- Tightening specification -item 8- OVERVIEW - REAR SHOCK ABSORBERS => List Item:Bolt.
- Spring
- Replace if damaged
- Hydraulic Line
- Union bolt 16 Nm
- To the right rear shock absorber
- Color mark with one ring
- Hydraulic Line
- Union bolt 16 Nm
- To the left front shock absorber
- Color mark with two rings
- Hydraulic Line
- Union bolt 16 Nm
- To the front right shock absorber
- Without color mark
- Hydraulic Line
- Union bolt 16 Nm
- To the rear left shock absorber
- Without color mark
- Central Valve
- For the shock absorbers
- Front right
- Left rear
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- For the shock absorbers
- Central Valve
- For the shock absorbers
- Left front
- Right rear parking aid sensor
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- For the shock absorbers
- Bracket
- Rubber Bushing
- Bracket
- Nut
- 20 Nm
- Spacer Sleeve
- Bolt
- 9 Nm
