Central Valve, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

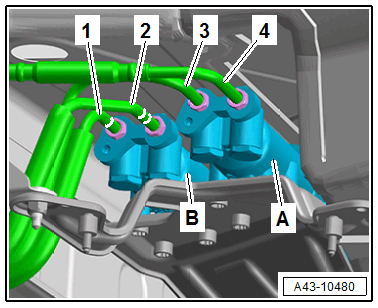

-- Install the DRC line connections for the appropriate lines on the central valve.
- Rear Right Shock Absorber - Color mark with one ring
- Front Left Shock Absorber - Color mark with two rings
- Front Right Shock Absorber - no color mark
- Rear left shock absorber - no color mark
-- Fill the DRC system. Refer to DYNAMIC RIDE CONTROL (DRC), DRAINING AND FILLING .
