Pressure Reservoir, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Drain the pressure reservoir. Refer to PRESSURE RESERVOIR, DRAINING .

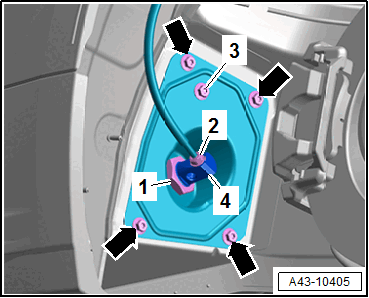

-- Left pressure reservoir: remove the air line -2- from the pressure reservoir -4-.
-- Remove the bolts -arrows- and remove the pressure reservoir.
-- If necessary, remove the nut -1- and bolt -3- and remove the pressure reservoir from the retaining plate. (Shown on the left pressure reservoir.)
