Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Remove the left rear wheel. Refer to WHEELS AND TIRES .
-- Remove the bolts and nuts -arrows-.
-- Loosen the wheel housing liner -1- in the rear area and push forward.

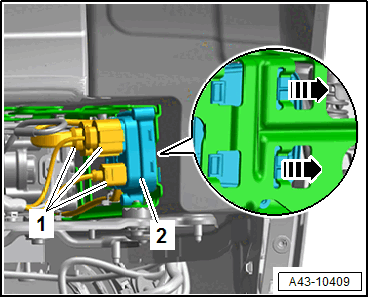

-- Disconnect the connectors -1-.
-- Carefully release the retainers with the T-Handle Hook:3438 -arrows- and remove the control module -2- toward the rear from the bracket.
