Air Line, Servicing: Procedure

• For each line a maximum of two repairs is permitted.
• For a connected wiring harnesses only one repair location each is permitted.
• The position of the repair location must be documented and supplied in the vehicle.
• Clean separation point area before disconnecting air line connector.
• Contaminants entering the lines can lead to system malfunction.

-- Clean the area on the connecting piece on the corresponding separation point. Refer to OVERVIEW - AIR LINES  for the separation point overview.

-- Cut through the air line at a right angle at the connector area using Hose Cutting Pliers:VAS6228  .

-- Remove the connector piece and air line.

Fig 1: Identifying End Line Mark On Air Line For Vehicle

Courtesy of AUDI OF AMERICA, LLC

-- Mark ends of air line in vehicle and both ends of new air line with a waterproof pen.

• With "17 mm" or "22 mm" marks, it is checked whether the connector piece is inserted far enough in air line.

-- Place the foam rubber on both line.

-- Install a new line connector.

TIP:

Connector pieces in line connector are already tightened to the proper tightening specification. Air lines only have to be connected.

-- Remove the transport protection cap.

-- Push the old air line through the sealing rings -1 and 2-.

Fig 2: Identifying Sealing Rings, Edges, And Cutting Ring

Courtesy of AUDI OF AMERICA, LLC

-- Then slide the air line with some force through edges -3 and 4- of cutting rings as far as stop -5- in line connector.

-- Push the foam rubber on the connecting pieces.

-- Repeat the procedure with the new air line.

-- Replace the connecting piece. Refer to CONNECTING PIECE, REPLACING .

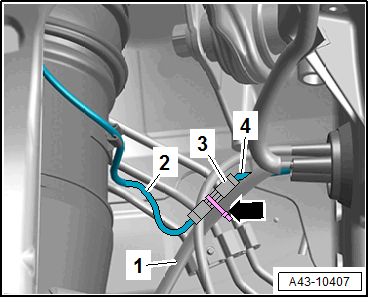

Separating Point: Air Line for the Front Air Spring

Courtesy of AUDI OF AMERICA, LLC

-- Service the air line -4-. Refer to Procedure .

-- Attach the wiring connector -3- and the new air line -2- to the wiring harness -1- with a cable tie -arrow-.

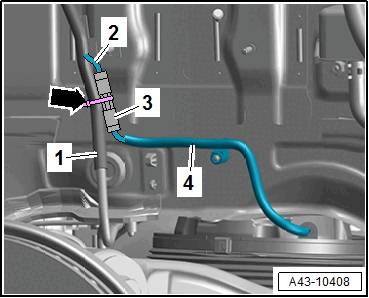

Separating Point: Air Line for the Rear Air Spring

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the original air line -2- from the wiring harness -1-.

-- Surround the wiring harness properly.

-- Service the air line. Refer to Procedure .

-- Attach the wiring connector -3- and the new air line -4- to the wiring harness with a cable tie -arrow-.
