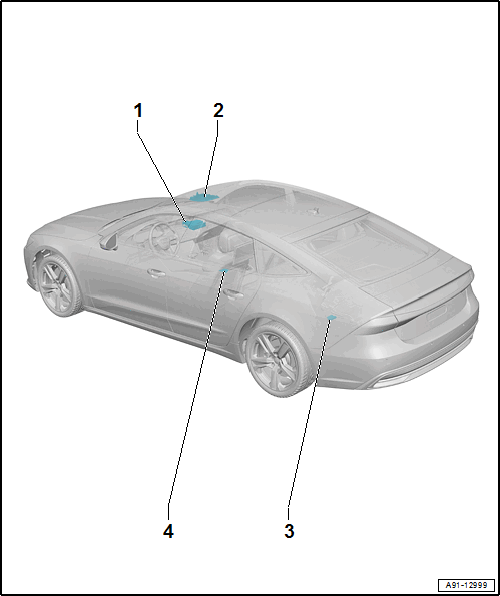

Component Location Overview - Telephone System, Through My 2020
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Right Front Microphone -R141-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT, THROUGH MY 2020 .
- Cellular Telephone Amplifier -R86-
- At the front of the luggage compartment in the rack
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
