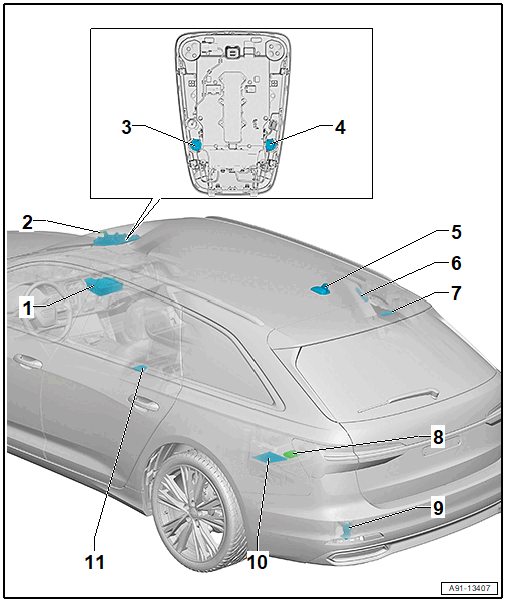

Component Location Overview - Telephone System, From My 2021, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Wireless Data Transmission Antenna 2 -R366-
- Removing and Installing. Refer to Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- Removing and Installing. Refer to Left Front Microphone -R140- /Right Front Microphone -R141-, REMOVING AND INSTALLING .
- Bluetooth Antenna -R152-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Antenna Amplifier 3 -R112-
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING, A6 AVANT .
- Antenna Amplifier -R24-
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING, A6 AVANT .
- Cellular Telephone Amplifier -R86-
- At the front of the luggage compartment in the rack
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- At the front of the luggage compartment in the rack
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Mobile Device Charger 1 -J1146-
- In the front center console storage compartment
- Removing and Installing. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
