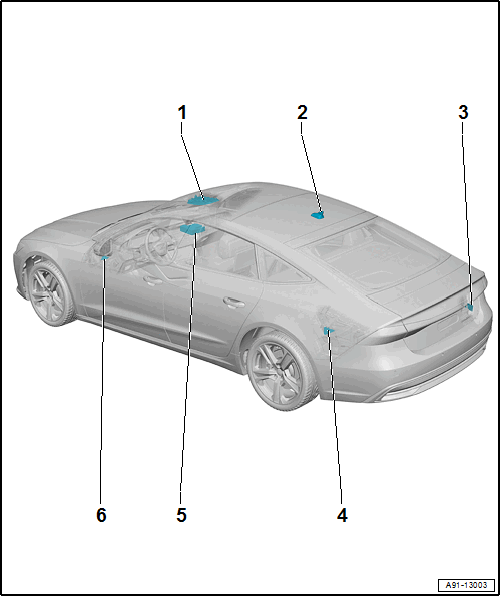

Component Location Overview - Mobile Online Services, Through My 2020
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Front Roof Module -WX3-
- With Left Front Microphone -R140- /Right Front Microphone -R141-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- GPS Antenna -R50-
- Emergency Call Module Antenna 2 -R322-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- On the rear bumper cover on the outside right
- Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Data Bus on Board Diagnostic Interface -J533-
- Vehicles without connect Plus, IV0
- Underneath the rear bench seat
- Removing and Installing. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE J533, REMOVING AND INSTALLING
.
- Control Module for Emergency Call Module and Communication Unit -J949-
- Vehicles with connect Plus, IV1 through IV8
- At the front of the luggage compartment in the rack
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
- Telematics Emergency Battery -A16-, Removing and Installing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING, WITH CONNECT PLUS, (IV0 THROUGH IV8), THROUGH MY 2020 .
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Emergency Call Module Speaker -R335-
- In the driver side footwell cover
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
