Overview - Infotainment System, MMI Navigation Plus (I8T), Through My 2020

• Information Electronics Control Module 1 -J794- behind the glove compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Navigation functions are integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685-, 10.1 inch display in the center of the instrument panel
• Front Information Display Control Head 2 -J1060-, 8.6 inch display in the front center console
• Instrument Cluster Control Module -J285-, color display in the instrument cluster, Audi virtual cockpit, 9S8
• DVD Player -R7- in the glove compartment, 7D5
• USB Distributor -R293- in the front center console storage compartment, two USB ports for data and charging, UF7
• Sound system: standard sound system, 9VD
• Video input for rearview camera system, KA2
• Bluetooth Hands-Free Calling, 9ZX
• Audi connect, Wi-Fi hotspot, EL3
• Voice recognition system

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• USB Distributor -R293- in the front center console storage compartment, 2 USB ports, SIM card, SD card, ASI, UI2/UE7/IU1
• TV Tuner -R78- in the center of the luggage compartment at the rear, QU1/QV1/Q0A/Q0B
• TV Card Reader -R204- in the luggage compartment on the left rear side in the center, Q0A/Q0B
• Digital Sound System Control Module -J525- on the left rear side of the luggage compartment, 9VS/8RF
• USB Connection 1 -U41- in the rear center console, UF8
• Wireless Control Head 1 -E859- in the rear center armrest, Smart Control (SCON), QW5
• Sound system: premium sound system, 9VS
• Sound system: advanced sound system, 8RF
• Audi phone box light, 9ZV
• Audi phone box, 9ZE
• Emergency call system, IW1/IW3/IW5
• Multifunction Steering Wheel

ASI - Audi Smartphone Interface

Courtesy of AUDI OF AMERICA, LLC

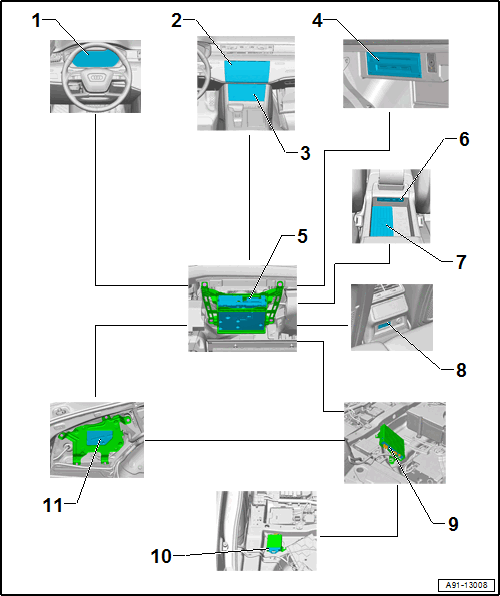

1. Instrument Cluster Control Module -J285-, Audi Virtual Cockpit, 9S8
2. Front Information Display Control Head -J685-, 10.1 Inch Display in the Center of the Instrument Panel
3. Front Information Display Control Head 2 -J1060-, 8.6 Inch Display in the Front Center Console
4. DVD Player -R7- in the Glove Compartment, 7D5
5. Information Electronics Control Module 1 -J794- Behind the Glove Compartment
6. USB Distributor -R293- in the Front Center Console Storage Compartment, UF7
7. Mobile Device Charger 1 -J1146-, Phone Box, in the Front Center Console Storage Compartment, 9ZV/9ZE
8. USB Connection 1 -U41- in the Rear Center Console, UF8
9. TV Tuner -R78-, QU1/QV1/Q0A/Q0B
   • In the center of the rear luggage compartment, for vehicles without a high-voltage system, 0K0/0K4
   • In the rear luggage compartment on the right, for vehicle with high-voltage system, 0K3
10. TV Card Reader -R204-, Q0A/Q0B
    • In the center of the rear luggage compartment, for vehicles without a high-voltage system, 0K0/0K4
    • In the rear luggage compartment on the right, for vehicle with high-voltage system, 0K3
11. Digital Sound System Control Module -J525- on the Left Rear Side of the Luggage Compartment, 9VS/8RF
