Overview - Infotainment System, MMI Navigation (I8V), Through My 2020
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794- behind the glove compartment
- Radio function is integrated in the Information Electronics Control Module 1 -J794-
- Navigation functions are integrated in the Information Electronics Control Module 1 -J794-
- Front Information Display Control Head -J685-, 8.8 inch display in the center of the instrument panel
- Front Information Display Control Head 2 -J1060-, 8.6 inch display in the front center console
- Instrument Cluster Control Module -J285-, color display in the instrument cluster, 9S7
- USB Distributor -R293- in the front center console storage compartment, two USB ports for data and charging, UF7
- Sound system: basic sound, 8RM
- Sound system: standard sound system, 9VD
- Video input for rearview camera system, KA2
- Bluetooth Hands-Free Calling, 9ZX
- Audi connect, Wi-Fi hotspot, EL3
- Voice recognition system
Optional
- Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
- The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
- DVD Player -R7- in the glove compartment, 7D5
- USB Distributor -R293- in the front center console storage compartment, 2 USB ports, SIM card, SD card, ASI, UI2/UE7/IU1
- USB Connection 1 -U41- in the rear center console, UF8
- Digital Sound System Control Module -J525- on the left rear side of the luggage compartment, 9VS/8RF
- Sound system: premium sound system, 9VS
- Sound system: advanced sound system, 8RF
- Audi phone box light, 9ZV
- Audi phone box, 9ZE
- Emergency call system, IW1/IW3/IW5
- Multifunction Steering Wheel
ASI - Audi Smartphone Interface

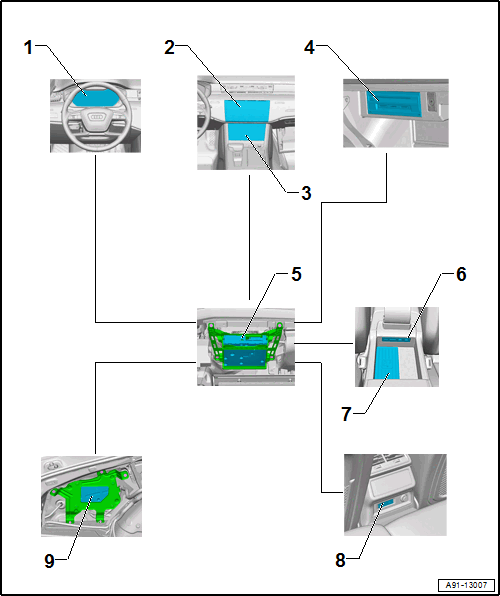

- Instrument Cluster Control Module -J285-, Color Display in the Instrument Cluster, 9S7
- Front Information Display Control Head -J685-, 8.8 inch Display in the Center of the Instrument Panel
- Front Information Display Control Head 2 -J1060-, 8.6 inch display in the front center console
- DVD Player -R7- in the Glove Compartment, 7D5
- Information Electronics Control Module 1 -J794- Behind the Glove Compartment
- USB Distributor -R293- in the Front Center Console Storage Compartment, UF7
- Mobile Device Charger 1 -J1146-, Phone Box, in the Front Center Console Storage Compartment, 9ZV/9ZE
- USB Connection 1 -U41- in the Rear Center Console, UF8
- Digital Sound System Control Module -J525- on the Left Rear Side of the Luggage Compartment, 9VS/8RF
