Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
-- Release and disconnect the connectors from the Front Information Display Control Head 2 -J1060-.
-- Remove the Switch Module in Instrument Panel, Center -EX22-. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .

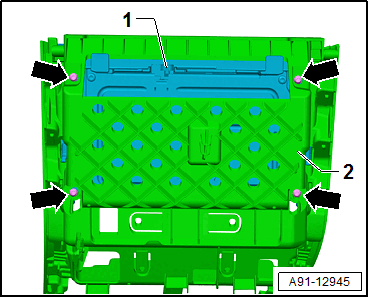

-- Remove the screws -arrows- and remove the Front Information Display Control Head 2 -J1060- -1- from the center console insert -2-.
