Auxiliary Display Control Head 1 -E857-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- If equipped, remove the Wireless Control Head 1 -E859-.
-- Remove the frame from the rear center armrest insert. Refer to OVERVIEW - CENTER ARMREST .

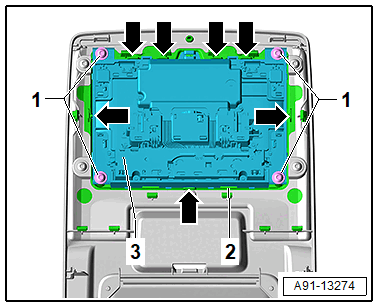

-- Remove the bolts -1-.
-- Release the catches -arrows- on the trim for the center armrest insert -2- with a small screwdriver and remove the Auxiliary Display Control Head 1 -E857- -3-.
