Wireless Data Transmission Antenna - R336-, Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Lower the headliner. Refer to HEADLINER, LOWERING .

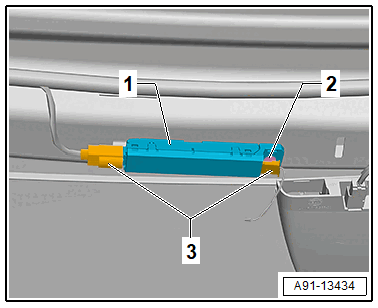

-- Release and disconnect the connectors -3-.
-- Loosen the bolt -2- several turns.
-- Remove the Wireless Data Transfer Antenna -R336- -1- from the rear roof crossmember.
Wireless Data Transmission Antenna -R336-, Installing
Install in reverse order of removal.
Wireless Data Transmission Antenna -R336- Tightening Specifications
| Components | Tightening Specification |
|---|---|
| Wireless Data Transfer Antenna -R336- Bolt on Roof Crossmember | 2 Nm |
